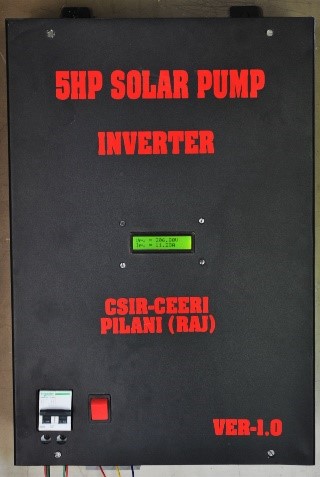

5HP Three Phase Solar Inverter for Pump Drive

The inverter has Temperature independent MPPT. Galvanic Isolation feature provide natural accidental protection. Dynamic V-I maximum power point tracking (MPPT) control method is utilized.
Variable Frequency Drive (VFD) to provide maximum torque with minimum sunlight.

For drive deep well submersible motor pump and Variable frequency solar AC drive.

• Conversion drive efficiency is 90-93% , along with  high reliability
• System protection: Over-voltage; Short Circuit; Overheating; Over Current Protection

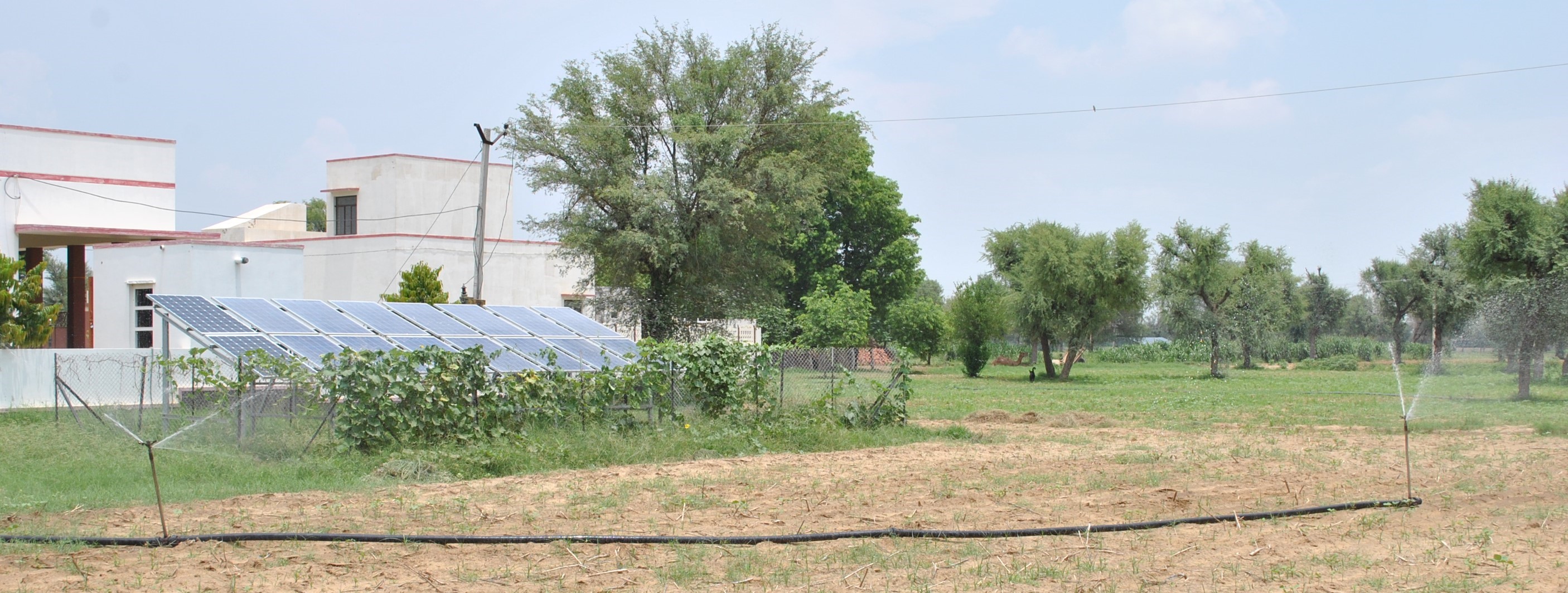

• Pump can be directly connected to the drip irrigation system, fountain system
• Intelligent power module (IPM) for the main circuit with high reliability.
