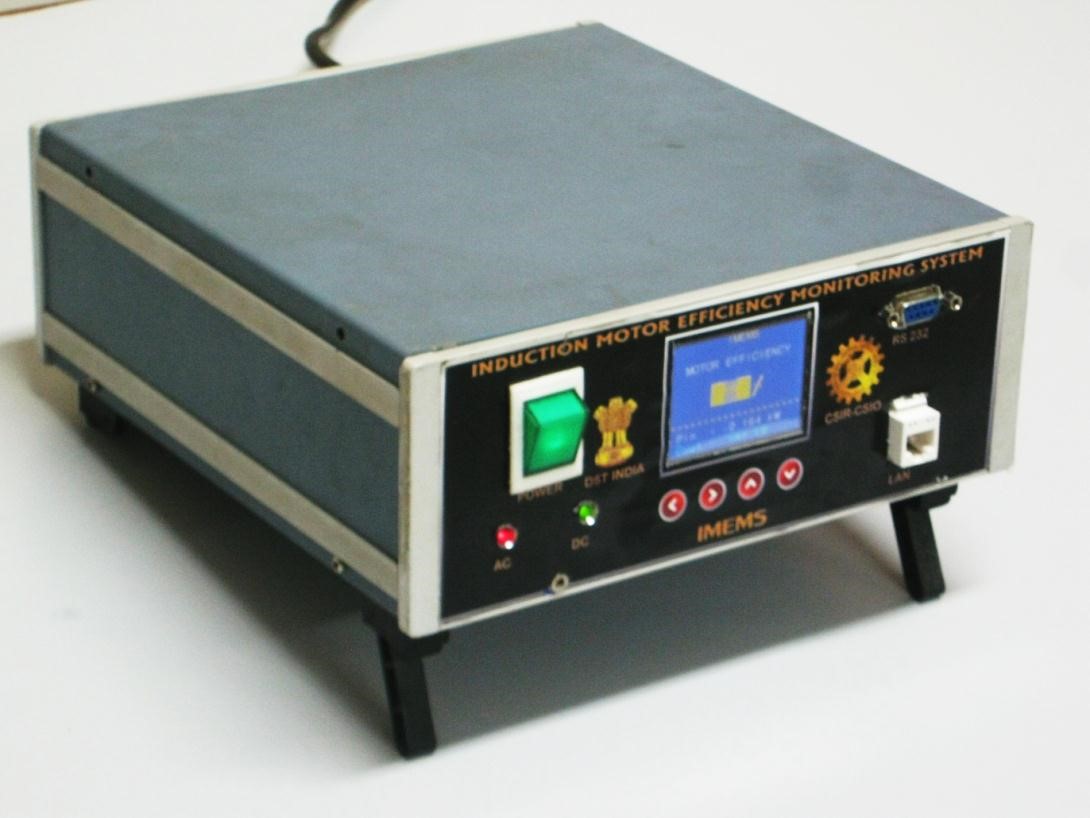

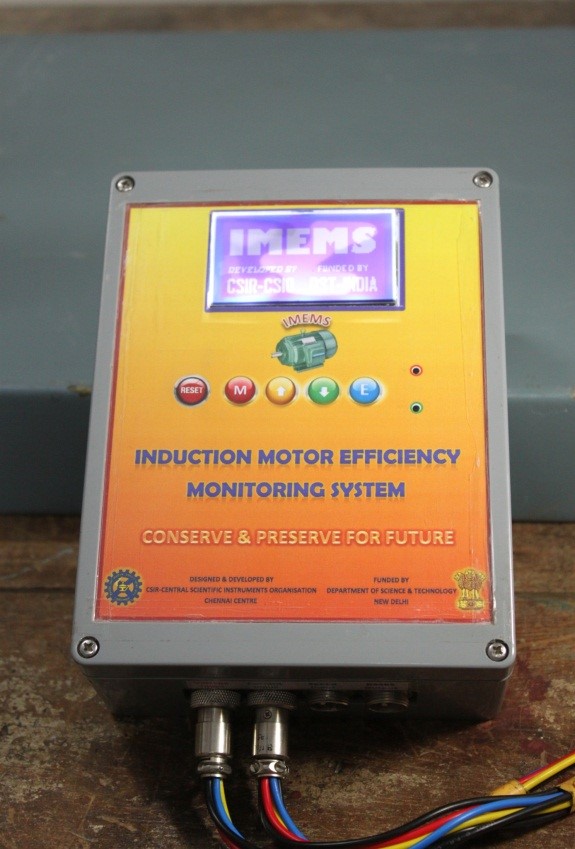

Induction Motor Efficiency Monitoring System

The IMEMS displays the operating efficiency of motor by monitoring the electrical power input (like voltage, current & power) and shaft speed of the motor. The IMEMS determine the operating efficiency of motors without removing the motors from the field and without the need for measuring the output power or torque. The system uses few sets of data coupled with the special algorithm for evaluating the motor parameters instead of using the no-load and blocked rotor test results. CSIO has developed two versions of IMEMS; namely Standalone IMEMS (SIMEMS) and Networked IMEMS (NIMEMS).

For monitoring multiple motor performances in the industries.

• Stand-alone system
• Portable instrument
• Best suitable for conducting on-site energy audits.
