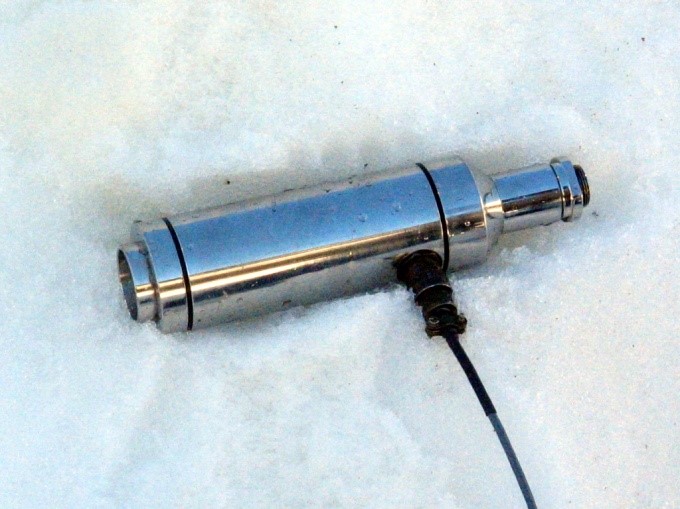

Infra Red Based Snow Surface Temperature Probe

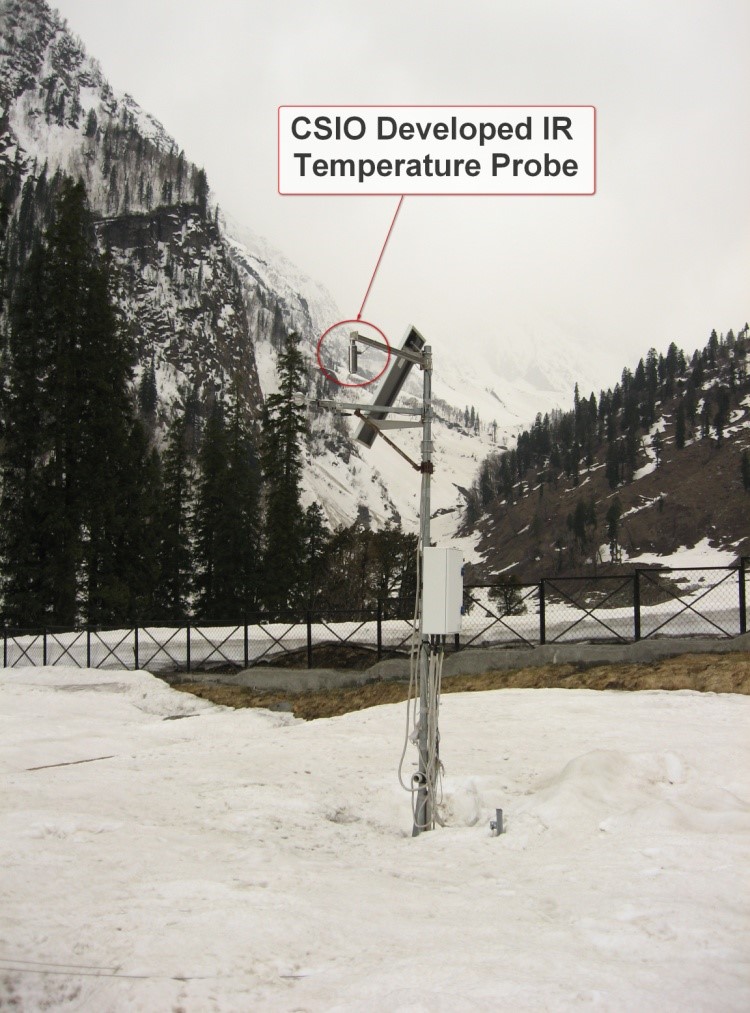

The sensor measures the snow surface temperature using non contact remote sensing method. It can be easily interfaced with any automatic weather station.

For snow Cover Modeling to Forecast  Snow Avalanche, Flood & Water Rise

• Weather proof mechanical design.
• Probe can be directly interfaced to different Data Acquisition Systems.
• Operable 100% RH and wind speed of the order of 200 Km/h.
• ±50ºC Measurement Range with 0.1ºC Resolution, ±0.5ºC Accuracy &
• ±0.1ºC Repeatability.
• Spectral band pass: 8 < wavelength < 14 µm
• 4°Field of View
• Sighting: Line of  sight
• 0 to +5Vdc Output signal
• Response time: 0.25 second
• 10.5  to 14.0 Vdc, 20mA operating power
