Location of Bullet on Target System - Acoustic Based Hit Identification and Analysis System (ABHIAS)

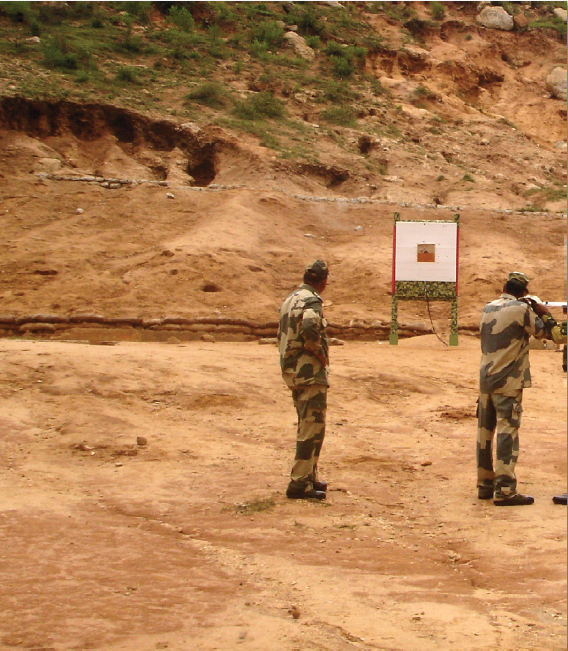

CSIR-NAL developed ABHIAS is an indigenous, cost effective electronic target training system for perfecting soldier marksmanship skills by accurately determining the location of bullet impact on the target during training. It works for all supersonic
and subsonic weaponry used by the Indian armed forces, paramilitary forces and police forces.

ABHIAS is an automated system to detect bullets using acoustic detection and localization of hits on target by acoustic time delay estimation methods. Real time and precise system, catering for individual to tactical level of exercise settings. System caters to almost all weapons including rifles and CQC weapons.

Indigenous design tailor made for Indian Armed Forces and Paramilitary Forces with high degree of ruggedisation to meet Mil Grade Standards. Configured out of COTS item to ensure low post sale maintenance cost.

System Capabilities

• Accuracy better than globally available systems
• Detection zone of 600mm diameter from centre of target
• Wide Azimuth and elevation angles
• Hit localization by position of X & Y
• Varied categorisation of shot as per performance i.e. Hit, Miss, Improper and Cross Shot
• Self Healing Targets capable of withstanding atleast 8000 shots
• Real time Performance evaluation
• Real time HAT analysis
• Interactive Grouping and Zeroing

• Automated Range Control with database management
• Variable firing positions without any recalibration
• Exercises as per SAO 12/S/85 and facility for user defined exercise setting
• Seamless wireless network with Ethernet enabled network

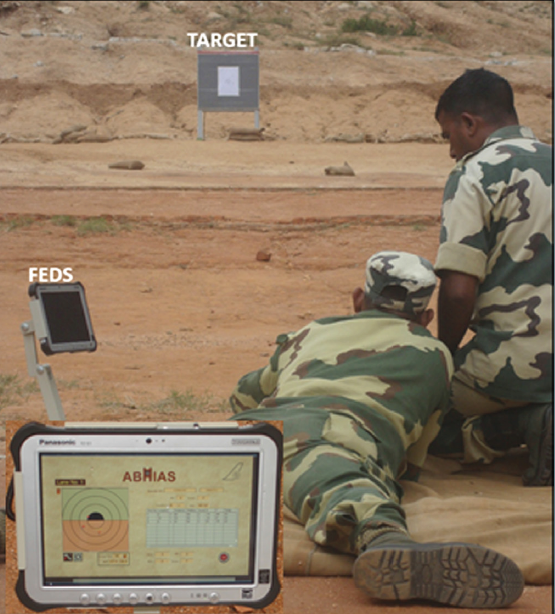

• Roaming Firing Point Officer (RFI) and Firer End Display Interface (FEDS)
• Interactive & User Friendly GUI
• Power on self diagnostic and real time diagnostic during the exercise
• Unit Level Package for firer management and performance evaluation outside the range

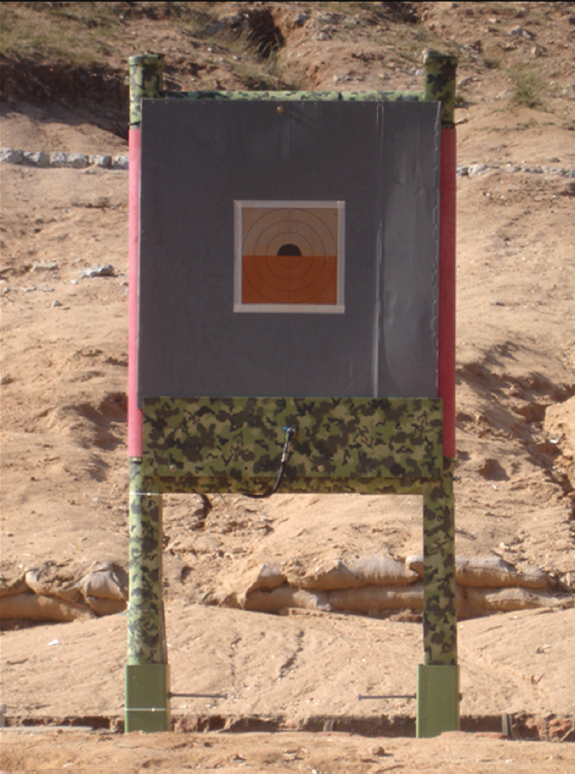

• All weather-proof carbon fibre composite sensor bar
