Partially Insulated Single Leaf Single Swing Metal Composite Fire Door for 120 Minutes

Different part of building is separated from each other into compartments by fire resisting construction in which opening are closed by door, which have precise functions to fulfill in case of fire. Fire door helps restricting the movement of flames, smoke, and heat during fire. Common use of fire door in important buildings such as Hospitals, Office buildings, Shopping malls, Schools, Universities and other large human occupies permanent structure.

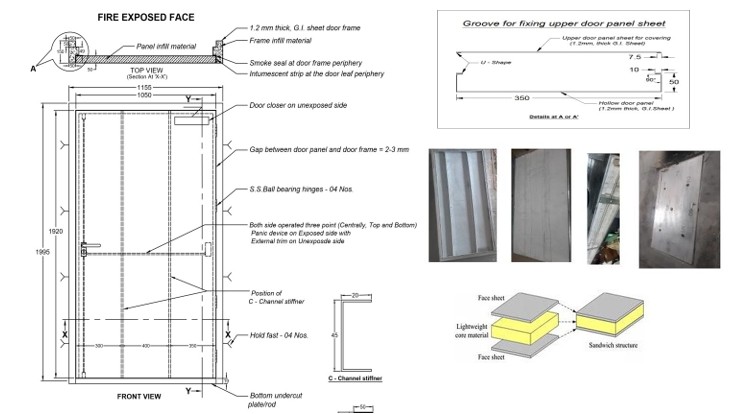

The objective of the project is to develop partially insulated single leaf single swing metal composite fire door for 120 minutes as per IS: 3614-2021 as well as compatible with other national and international standards.

1. Door specifications as per IS: 3614-2021

2. It has symmetrical construction.

3. Infill materials easily available.

4. Infill materials easy to apply.

5. Door open outward the room which provide full use of panic bar.

6. Self closing, self latched

7. It has light weight only approx. 87 kg without hardware.

8. Door has 120 min. partially insulated rating as per IS: 3614-2021
