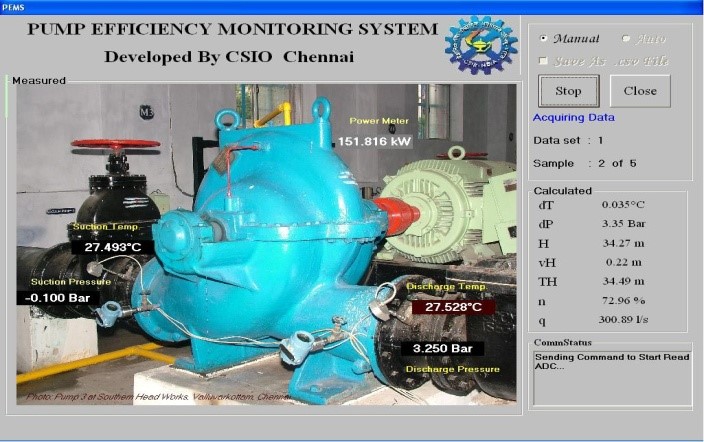

Pump Efficiency Monitoring System

The pump losses are calculated from the measurement of inlet and outlet fluid temperature and the dynamic head developed by the pump. Pump Efficiency is then calculated. By monitoring the electrical power to the motor, the pump flow rate is also calculated

Useful for industries and pump houses  for maintaining the pumps at their best operating point.

• Single unit capable of monitoring on-line power, head, flow & efficiency of the pump.
• Power Measurement with accuracy of 1%
• Capable of configuring the pump parameters
• Capable of displaying all measurements and parameters of the pump on-line
• Capable of logging data as .CSV format for analysis of the pump
• On-line Flow & Efficiency measurement with an accuracy of 1%
• Proper Planning & Maintenance of the pump to operate pump with optimum energy consumption
• Refurbishment of the pump at appropriate time periodically to increase the life of the pump
• Facilitate operation of pump at Best Operating Point (BOP)
