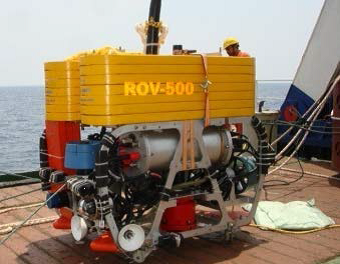

Remotely Operated Vehicle (ROV) : 500 m. Depth

ROV-500 is capable to operate at 500m under the sea with a speed of 2-4 knots and collect photographs of the underwater environment on line as well as other useful information. It can be customized for various underwater applications

Underwater environment information collection

• Operating depth upto 500 m.
• Max. operating speed upto 4 knots
• Dimension:1200 mm(L)x800 mm (W) /1000 mm.(H)
• Propulsion 05 thrusters, 93 kfg (for), 52.2 kgf (rev)
• Config. Open-frame structure
• Ballast : Solid buoyancy pack
• Network based distributed control system & Navigational algorithms based on efficient data acquisition
• Ethernet communications, analog video transmission, acoustic telemetry for APOS
• Neutrally buoyant electro-opto-mechanical cable for power, signal & video
• Motorised winch system for cable handling with remote handset
• GUI based ROV control software using distributed system architecture.
